LED Infinity Mirrors
| Various types and configurations of LED Infinity Mirrors created by Chromation Systems. Currently Kits are available for 10" x 10" model and 18" Round model. If you need
assistance in designing a your own Infinity Mirror or would like to ask about purchasing a customized kit or assembled unit, Please Contact Us
Click or Save the diagram to view the plans to build your own Infinity Mirror. The diagram is for a square mirror but can be adjusted for custom sizes. Please view the Webpages and Instructables, for more construction details. |
 Click for Hi-Res or R-Click and "Save Link As" |
10" x 10" LED Infinity Mirror Kit
A kit containing all the parts and electronics for your own Infinity Mirror. Choose from a variety of colors, Red, Green, Blue, Yellow, Orange, Cool White, UV, Purple, Pink, Turquoise, Aqua-Green or Mix-And-Match to create color patterns. Relativly easy to assemble and wire. Vastly improved over the previous Infinity Mirror kit, stronger frame, better hang options and simpler wiring. Utilizingthe new 8 Channel LED Controller .v3 and the compatible MonoMotion Software
Visit the 10" x 10" LED Infinity Mirror Kit Webpage for Videos and Information.

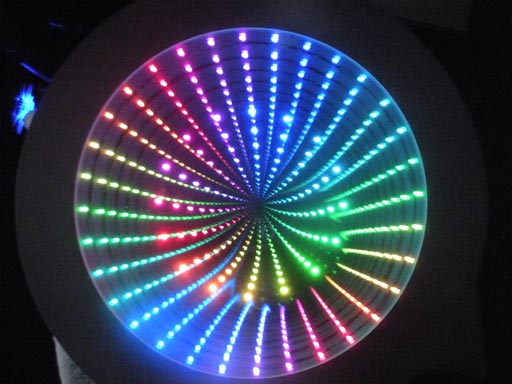

18" Round LED Infinity Mirror Kit
24" diameter overall with 18" viewable. 32 LEDs(solid or RGB) around the outside, and an optional 16 in the rear mirror, so they appear to float.
Visit the 18" Round LED Infinity Mirror Kit Webpage for Videos and More Information.
Custom Octagon RGB LED Infinity Mirror
A custom order, contains 80 RGB LEDs and is 29" x 29" viewable. Includes an 16 RGB LED ring in the rear mirror. Utilized the discontinued 8 Channel RGB LED Controller, which has been replaced in favor of the 16 Channel RGB / 48 Channel Mono LED Controller.
Video can be viewed on the left, or Visit the Octagon RGB LED Infinity Mirror Webpage
8x8 LED Multiplexed Infinity Mirror
A different take on an Infinity Mirror, instead of having the LED on the outside, all the LEDs were arranged in an 8 x 8 grid(64 LED Total) and simple animations/graphics were displayed. Made of 5mm White LEDs and the same techniques as a standard Infinity Mirror.
Watch the video on the left or Visit the 8x8 LED Multiplexed Infinity Mirror Webpage for More Details.
40 RGB LED Infinity Mirror, 16" x 16"
40x Common Cathode RGB LEDs with 8-bit PWM RGB LED Controller. 24" x 24" x 3.5" Overall, with a 16"x16" viewable area. 40 LEDs Built using the same plans, but scaled up.
Watch the video on the left or Visit the 16" x 16" RGB LED Infinity Mirror Webpage for More Details.
Other:
(Left)28 Auto Fade LEDs. Very simple to build, with a great effect. All the LEDs cycle through R-G-B-repeat by themselves. Find Them in The Store
(Right)28 UV LEDs, was very first mirror. Used sun film on acrylic for the front 2-way mirror and Mylar film on acrylic for the rear mirror. No Controller More Details
